DS304-N03BF024DXT: GENERAL ELECTRIC DC INTERRUPTER DB CONTACTOR
📞 Call for Availability & Pricing
Call (412) 331-6555DS304-N03BF024DXT, GENERAL ELECTRIC, DC INTERRUPTER, DYNAMIC BRAKING, DB, CONTACTOR

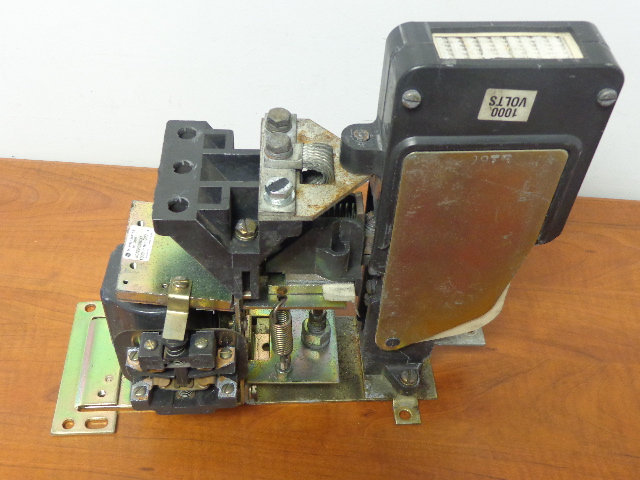

DS304-N03BF024DXT GENERAL ELECTRIC
DC INTERRUPTER CONTACTOR
OEM# DS304-N03BF024DXT
1 NORMALLY CLOSED POWER POLE
DYNAMIC BRAKING DB CONTACTOR
300A 1000V
COIL# 22D101G18A 24VDC
OTHER COILS MAY BE AVAILABLE
Quantity: CALL FOR AVAILABILITY
Condition: RECONDITIONED WITH FRESH PLATING WITH GOOD USED CONTACTS 80% SILVER OR BETTER
This contactor utilizes the following parts:
|
drawing ref# |
DS304S03BF024DXT parts list |
PART DESCRIPTION |
|
17 |
129B5696G1 |
FRAME ASSM (UPPER) |
|
18 |
22D101G18A |
COIL-24Vdc |
|
19 |
129B5694G1 |
FRAME ASSEMBLY (LOWER) |
|
20 |
202B3625G3 |
ARMATURE ASSEMBLY |
|
21 |
N203P21B6 |
HEX NUT |
|
22 |
167A9802P1 |
EYEBOLT |
|
23 |
304A6600G2 |
TERMINAL |
|
25 |
N22P23016B6 |
SCREW |
|
26 |
412649P1 |
SPRING |
|
27 |
405P41B43 |
LOCK WASHER |
|
28 |
626009P3 |
SPRING WASHER |
|
30 |
237B7722G5 |
TIP AND SUPPORT ASSM |
|
30D (not shown) |
305A6253G1 |
MOVABLE TIP |
|
31 |
195B6288G4 |
ARC CHUTE SUPPORT ASSM |
|
31E |
259a5655G1 |
STATIONARY TIP |
|
34 |
405P39B43 |
LOCK WASHER |
|
35 |
73A4788P1 |
SPRING SUPPORT |
|
36 |
59A8158P2 |
SHIELD |
|
37 |
04A6601P1 |
ARC CHUTE ATTACH BKT |
|
40 |
95B6285G2 |
ARC CHUTE |
|
41 |
59A5667P1 |
TERMINAL |
|
42 |
59A2698P1 |
COIL RETAINER |
|
43 |
04A7973P1 |
NAMEPLATE-1000V |
|
44 |
144P21012B43 |
SCREW |
|
46 |
170P16016B6 |
EYEBOLT |
|
50 |
26P21032B6 |
SCREW |
|
51 |
402AP11B6 |
WASHER |
|
52 |
047749P1 |
STUD |
|
53 |
26P21008B6 |
BOLT |
|
69 |
203P29B6 |
NUT |
|
70 |
402AP12B6 |
WASHER |
|
71 |
405P42B43 |
LOCKWASHER |
|
72 |
405P45B43 |
LOCKWASHER |
|
73 |
73A4788P2 |
SUPPORT |
|
74 |
931P112B6 |
SCREW |
|
77 |
144P21010B43 |
SCREW |
|
96 |
57P16012B6 |
SCREW |
|
99 |
59A8157P1 |
SHIM |
Following the purchase of any surplus item, product will be properly and professionally cleaned, painted, and tested. This is to ensure our customers of the quality, appearance, and function prior to shipment. Our extensive inventory also includes new items as well as hard to find obsolete items. We are a proud member of PEARL, and recondition all of our items to meet or exceed their reconditioning standards by our highly trained and experienced technicians. If it's from The Motor Control Center you can be sure that you will receive the absolute highest quality at the absolute lowest price.
